Product Description
Full Face and Smart Trigger kit for standard PS5 DualSense BDM-030, BDM-040, BDM-050, BDM-060, BDM-060M, BDM-060X and BDM-060R controllers only. Converts the four action buttons, D-pad, R2/L2 triggers and R1/L1 bumpers to 60g Omron D2LS-21 blue switches. Includes the flex board, trigger mounts and required custom action buttons and D-pad. Stock face buttons cannot be used with this kit. Installation requires permanent shell and trigger trimming; review the guide before purchasing.
- Full face flex board with triggers using D2LS-21 Omron buttons (60 gram)
- Trigger Mounts
- Custom Action buttons and D-pad (must be used)
- Links to installation guide.
Console Customs Full Face Omron kit with Smart triggers, converts your action buttons, D-pad, triggers and bumpers to Omron D2LS-21 buttons for instant reaction time and shorter button throw distance. This kit modifies the triggers to remove all but 2mm of travel. With just a short pull you will have a 100% trigger press. This is a perfect mod for FPS games where you want quick accurate firing. The bumpers, D-pad and action buttons are all near 1mm to remove the squishy feel and reduce the travel.

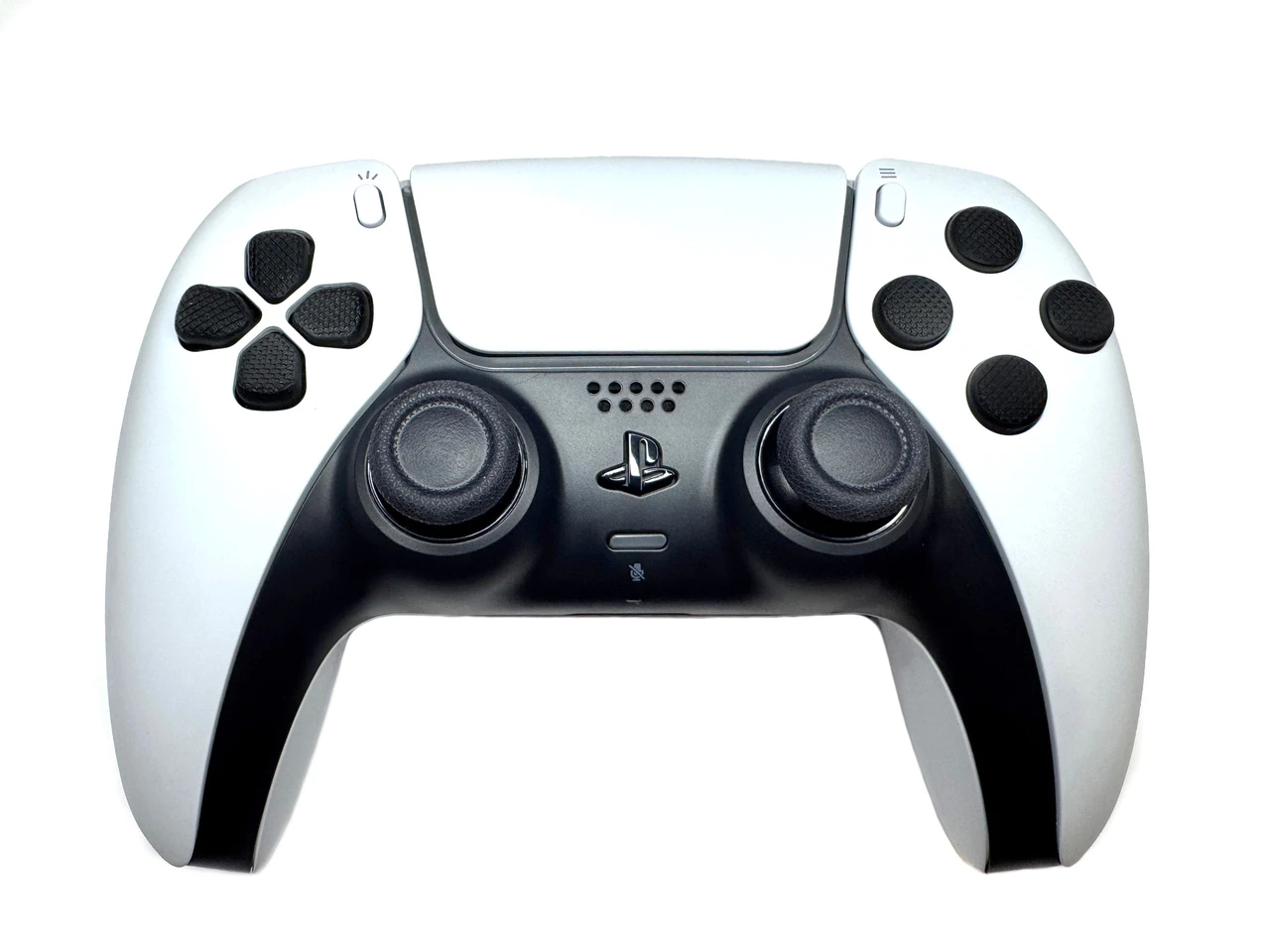

The included custom button and D-pad set is high resolution resin 3D printed. Due to the 3D printing process there are small bumps on the back side of the button which are not visible after installation and do not interfere with the functionality of the button. You can see close up pictures of a finished controller above.
The mouse click edition, as the name implies, uses mouse buttons. These are OMRON D2LS-21 snap action switches with a very defined click and feel just like a computer mouse. These are by far the most popular option as they provide an audible and tactile Feedback when pressed. This model Switch requires 60 grams of force to actuate.
This mod is RAPID FIRE COMPATIBLE! We have specifically designed these to work with our rapid fire mods, something previously not possible.
- Installation of this trigger kit requires opening your controller which will void it's warranty.
- Opening a PS5 controller requires a Phillips PH00 screwdriver (not Included).
- Installation of this kit requires trimming of tabs on the back of the triggers and enlarging tab openings of the 4 action buttons. This in no way effects the functionality of the buttons or triggers and the mod can be removed at any time and reverted to stock if needed.
Find our Installation guide View installation and user guides
